HEAT EXCHANGERS
E-505 Column Reboiler
Tube Grade: SA-179
Number of Tubes: 2578 pcs
Tubesheet Grade: SA105 (double tubesheet)
Type of the Joint: Expansion
Type of Expansion Joint: TEMA
Code: ASME Sec.VIII Div.1 & TEMA Class R
Shell Side Test Pressure: 30 barg
E-506/B Column Overhead Condenser
Number of Tubes: 2457 pcs
Tubesheet Grade: SA266 Gr.2
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1 & TEMA Class R
Shell Side Test Pressure: 9,75 barg
Not Condenser
Number of Tubes: 1784 pcs
Tubesheet Material: Duplex (1.4410)
Type of the Joint: Makinato
Test Pressure: 15 barg
EN-329 Refrigerant After Cooler
Number of Tubes: 592 pcs
Tubesheet Grade: SA350 LF2
Type of the Joint: TIG + Expansion
Type of Expansion Joint: TEMA
Code: ASME Sec.VIII Div.1 & TEMA Class R
Tube Side Test Pressure: 23 barg
Shell Side Test Pressure: 30 barg
Transfer Line Exchanger
Material Grade: 16Mo3
Test Pressure: 198 barg
High Pressure Heater
Tubesheet Material: A-105 + Inconel Kaplama
Tube Side Test Pressure: 352 barg
Shell Side Test Pressure: 27 barg
Combined Feed Heater Bundle
Tube Grade: SA213 Tp316L
Number of U-Tubes: 750 pcs
Tube Bending Standard : ASTM A556
Tubesheet Grade: SA182 F316L
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1&TEMA Class R
Tube Side Test Pressure: 48 barg
E-119 Drying Column Reboiler
Number of Tubes: 354 pcs
Tubesheet Grade: SA-105
Type of the Joint: Expansion
Type of Expansion Joint: TEMA
Code: ASME Sec.VIII Div.1&TEMA Class R & PED 2014/68/EU
Tube Side Test Pressure: 6 barg
Shell Side Test Pressure: 15 barg
E-008 Economiser
Tube Grade: SA249 Tp304L
Number of Tubes: 1151 pcs
Tubesheet Grade: SA182 F304L
Type of the Joint: TIG
Type of Expansion Joint: EJMA
Code: ASME Sec.VIII Div.1&TEMA Class R& PED 2014/68/EU
Tube Side Test Pressure: 7,5 barg
Shell Side Test Pressure: 72,6 barg
E-227-A/B After Cooler Bundle
Tube Grade: SA-179
Number of Tubes: 856 pcs
Tubesheet Grade: SA-266 Gr.2
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1 & TEMA Class R
Tube Side Test Pressure: 8 barg
E-418 Preheater
Number of Tubes: 763 pcs
Tubesheet Grade: SA-105
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1&TEMA Class C
Tube Side Test Pressure: 17 barg
Shell Side Test Pressure: 67 barg
E-009 Reaction Water Conderser
Tube Grade: Sandvik® 2RE10
Number of Tubes: 1279 pcs
Tubesheet Grade: A-182GrF304L
Type of the Joint: TIG + Expansion
Code: AD Merkblatter & TEMA Class B
Tube Side Test Pressure: 9,75 barg
Shell Side Test Pressure: 7,5 barg
E-010 Tail Gas Preheater
Tube Grade: A249Tp321
Number of Tubes: 1160 pcs
Tubesheet Grade: A240Tp321
Type of the Joint: TIG + Expansion
Code: AD Merkblatter & TEMA Class C
Tube Side Test Pressure: 7,5 barg
Shell Side Test Pressure: 14,25 barg
Salt Cooler
Tube Grade: SA-179
Number of Tubes: 525 pcs
Tubesheet Grade: P355GH
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1&TEMA Class R
Tube Side Test Pressure: 31,5 barg
E-101-C Waste Heat Boiler
Inner Tube Grade: SA-179
Outer Tube Grade: SA-209Gr.T1
Number of Tubes: 406 sets
Tubesheet Grade: SA-105
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1&TEMA Class R
Tube Side Test Pressure: 210 barg
Low Pressure Heater
Tube Grade: 16Mo3
Number of U-Tubes: 324 pcs
Tube Bending Standard : Tema-R
Tubesheet Grade: P355GH
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1&TEMA Class R
Tube Side Test Pressure: 31,5 barg
Shell Side Test Pressure: 1,5 barg

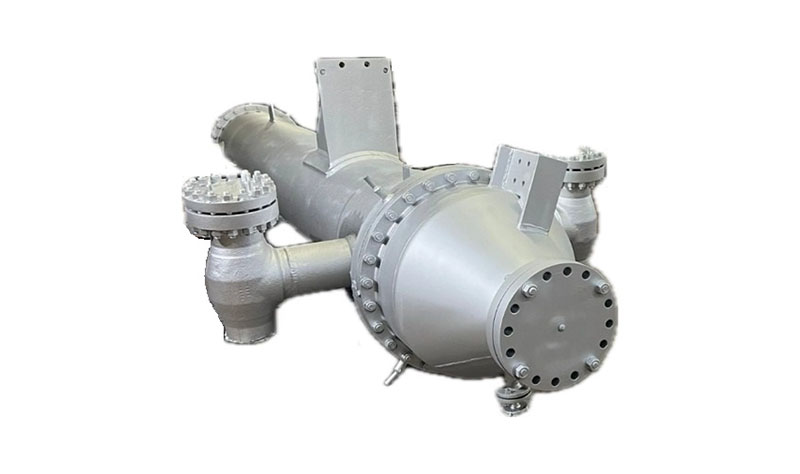

F-22 Transfer Line Exchanger
Tube Grade: 13CrMo4-5
Tubesheet Grade: 13CrMo4-5
Tube Side Test Pressure: 200 barg
Shell Side Test Pressure: 16,5 barg

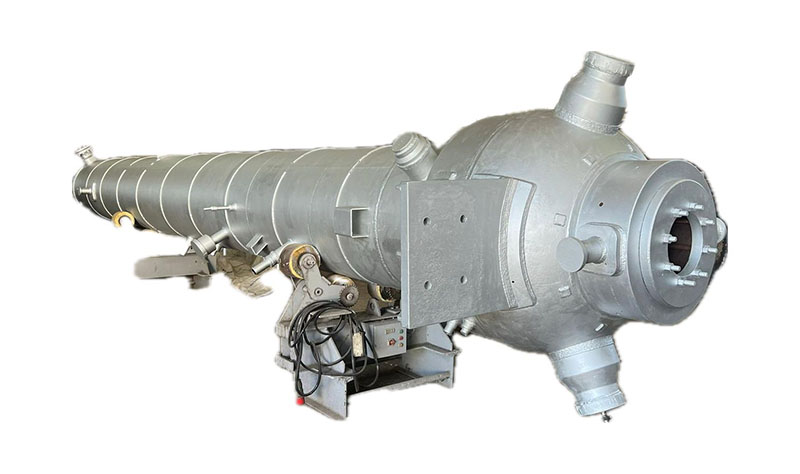

HP-4 High Pressure Heater
Tube Grade: 16Mo3
Number of U-Tubes: 421 pcs
Tube Bending Standard : Tema-R
Tubesheet Grade: SA182 F11 Cl.2 + Inconel 600 Cladding
Type of the Joint: TIG + Expansion
Code: ASME Sec.VIII Div.1
Tube Side Test Pressure: 313,5 barg
Shell Side Test Pressure: 25 barg
